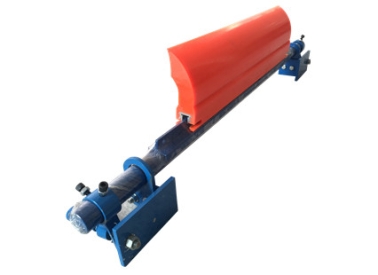

Name：HEAVY DUT CONVEYOR CLEANER
Details
1.SCRAPER MOUNTING POSITION INTRODUCTION
Conveyor Belt Cleaner using imported raw materials and posess proprietary polyurethane production design pr.The advantages are high elasticity, impact resistance and wear resistance, thus to ensure good cleaning effect,also, it can protect the belt from damaging, and ensure the mechanical buckle going through smoothly.
2.TYPES OF CHUANG YEE BELT CLEANERS
|
Item No.
|
Type of Cleaner
|
Type of Replacement blades
|
|
1
|
Primary belt cleaner
|
Polyurethane blades
|
|
2
|
Secondary belt cleaner
|
Polyurethane blades or Polyurethane blades with Tungsten carbide tips
|
|
3
|
V-plow belt cleaner
|
Polyurethane blades with stell pipe stent
|
|
4
|
H-type belt cleaner
|
Tungsten carbide tips blades
|
|
5
|
P-type belt cleaner
|
Tungsten carbide tips blades
|
3. OUR ADVANTAGE
•Using polymer polyurethane board that all our raw materials are from Bayer, BASF,Mitsui Chemical and Huntsman etc.,
•About ten years experiences in Chemical materials field with mature technology and proprietory polyurethane formula;
•Cleaner is suited on conveyor belts width from 18 to 80 inches ( 450~2000mm) and head pulley diameter from 18 to 63 inches(450~1600mm);
4.REPLACEMENT BLADES FOR PRIMARY BELT CLEANER
This type scraper can ensure the blade and belt in a low and stable contact condition to longer its used life,and the intermediate buffer hole can make the blade have high impact strength and in a well performance.The special seal torsion spring group can avoid the block material or dust and it has self regulating function.
The Conveyor Belt PU Scraper from Chuang Yee is designed specifically for heavy duty applications where conveyor belt speeds exceeds 4 mps, and extra wear life is required due to material characteristics or long periods of service between conveyor belt maintenance shuts.
5.SPECIFICATION FOR CHUANG YEE BELT CLEANER
Spec. for Primary belt cleaner
Spec. for Secondary belt cleaner
Spec. for V-plow belt cleaner
For a price quotation or to order please tell us about your application:Belt Width, Belt Speed, Material Conveyed and technichal drawing can be provided to us is the best.
6.FEATURE FOR CHUANG YEE SCRAPER
1) Good Wear Resistance
2) High Temperature Resistant
3) Solvent Resistance
4) High Tensile Strengh
5) Excellecnt Dynamic Mechanical Formulation
6) Hydrolysis Resistance
7) Anti-static/Anti-xidant
8) Oil Resistance
9) High Load Capacity
7.PRODUCT PARAMETER
|
BELT WIDTH
|
450~2000mm
|
BELT SPEED
|
3~5M/S
|
|
COLOR
|
Red,black,green,orange
|
APPLICATION
|
Coal mine, cement plant
|
|
ABRASION LOSS
|
0.019~0.025CM3/1.61KM
|
ELASTIC RESILIENCE
|
34%
|
|
ELONGATION
|
>300%
|
WARRANTY
|
1 years
|
|
CLEAN EFFICIENCY
|
90~93%
|
TENSILE STRENGTH
|
30-53MPA
|
|
COMPRESSIVE SRENGTH
|
6~10.5MPA
|
DENSITY
|
1.12~1.25G/CM
|
|
HARDNESS
|
SHORE 60~95A
|
FICTION COEFFICIENT
|
0.12~0.15
|
|
TEAR STRENGHT
|
70KN/M
|
WORK TEMPERATURE
|
BELOW 80 CENTIGRADE
|
8.TECHNICAL PERFORMANCE
1) Many choices for the conveyor belt width from"450-2000mm"
2) Multiple replaceable PU blade types available
3) Easy to installation
4) Self-adjusting tensioner
5) Decrease maintenance hours and expenses
6) Ensuring consistent cleaning across all stages of blade wear and life
Application
Remark:
Our products are widely applied in aggregates, coal,ores,sands,cement,refuse,recyling,asphalt,salts and also can be used for all bulk material conveyor belts.
Packing & Delivery
PACKING
1) Woven Bags
2) Carton
3) Pallet
4) Wooden case
5) As per customer`s requests
DELIVERY
1) 15-30 working days once order confirmed;
2) The accurate time is determined by the model of product;
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. We will reply you for your inquiry in 24 hours.
3. Your business relationship with us will be confidential to any third party.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Related Products
Our products are widely applied in coal mine, power station, cement plant, iron mine, wharf and so on, if you have interest in any of our products, please feel free to contact us. We are sincerely looking forward to forming win-win business relationship with clients from all over the world.
Contact Information
DONGGUAN CHUANG YEE NEW MATERIAL CO.,LTD
Contact person:Kathy Deng
Add: Dongguan City,Guangdong Province,China
Phone：+86 13925775994
Whatapp: +8613925775994
Wechat:dsy13925775994
Skype:kathy_cynew@ hotmail.com
E-mail: kathy@ cynew.com
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in woven bags and cartons,we can also pack the goods as per your request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
